# importKerasLayers

Import layers from Keras network

## Description

example

layers = importKerasLayers(modelfile) imports the layers of a TensorFlow™-Keras network from a model file. The function returns the layers defined in the HDF5 (.h5) or JSON (.json) file given by the file name modelfile.

This function requires the Deep Learning Toolbox™ Importer for TensorFlow-Keras Models support package. If this support package is not installed, then the function provides a download link.

example

layers = importKerasLayers(modelfile,Name,Value) imports the layers from a TensorFlow-Keras network with additional options specified by one or more name-value pair arguments.

For example, importKerasLayers(modelfile,'ImportWeights',true) imports the network layers and the weights from the model file modelfile.

## Examples

collapse all

Download and install Deep Learning Toolbox Importer for TensorFlow-Keras Models support package.

Type importKerasLayers at the command line.

importKerasLayers

If Deep Learning Toolbox Importer for TensorFlow-Keras Models support package is not installed, then the function provides a link to the required support package in the Add-On Explorer. To install the support package, click the link, and then click . Check that the installation is successful by importing the layers from the model file 'digitsDAGnet.h5' at the command line.

modelfile = 'digitsDAGnet.h5';
layers = importKerasLayers(modelfile)
layers =

LayerGraph with properties:

Layers: [13×1 nnet.cnn.layer.Layer]
Connections: [13×2 table]

If the required support package is installed, then the function returns a LayerGraph object.

Import the network layers from the model file digitsDAGnet.h5.

modelfile = 'digitsDAGnet.h5';
layers = importKerasLayers(modelfile)
layers =
LayerGraph with properties:

Layers: [13×1 nnet.cnn.layer.Layer]
Connections: [13×2 table]

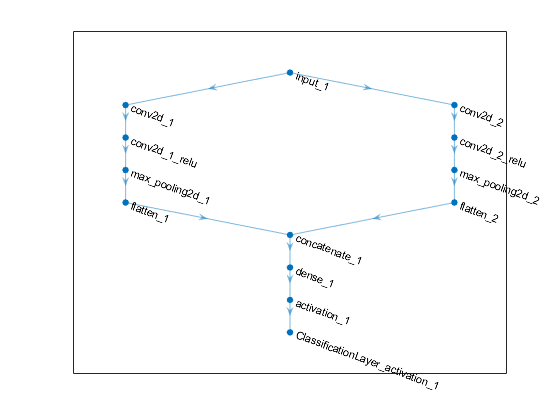

Plot the network architecture.

figure
plot(layers)

Specify the network file to import.

modelfile = 'digitsDAGnet.h5';

Import network layers.

layers = importKerasLayers(modelfile)
layers =
LayerGraph with properties:

Layers: [13×1 nnet.cnn.layer.Layer]
Connections: [13×2 table]

Load a data set for training a classifier to recognize new digits.

folder = fullfile(toolboxdir('nnet'),'nndemos','nndatasets','DigitDataset');
imds = imageDatastore(folder, ...
'IncludeSubfolders',true, ...
'LabelSource','foldernames');

Partition the dataset into training and test sets.

numTrainFiles = 750;
[imdsTrain,imdsTest] = splitEachLabel(imds,numTrainFiles,'randomize');

Set the training options.

options = trainingOptions('sgdm', ...
'MaxEpochs',10, ...
'InitialLearnRate',0.001);

Train network using training data.

net = trainNetwork(imdsTrain,layers,options);
Training on single GPU.
|========================================================================================|
|  Epoch  |  Iteration  |  Time Elapsed  |  Mini-batch  |  Mini-batch  |  Base Learning  |
|         |             |   (hh:mm:ss)   |   Accuracy   |     Loss     |      Rate       |
|========================================================================================|
|       1 |           1 |       00:00:00 |        5.47% |       6.4266 |          0.0010 |
|       1 |          50 |       00:00:05 |       81.25% |       0.6227 |          0.0010 |
|       2 |         100 |       00:00:08 |       92.19% |       0.2386 |          0.0010 |
|       3 |         150 |       00:00:12 |       96.88% |       0.0726 |          0.0010 |
|       4 |         200 |       00:00:16 |       97.66% |       0.0871 |          0.0010 |
|       5 |         250 |       00:00:19 |       99.22% |       0.0415 |          0.0010 |
|       6 |         300 |       00:00:23 |       97.66% |       0.0725 |          0.0010 |
|       7 |         350 |       00:00:27 |      100.00% |       0.0291 |          0.0010 |
|       7 |         400 |       00:00:30 |       99.22% |       0.0230 |          0.0010 |
|       8 |         450 |       00:00:34 |       99.22% |       0.0337 |          0.0010 |
|       9 |         500 |       00:00:38 |       99.22% |       0.0120 |          0.0010 |
|      10 |         550 |       00:00:41 |      100.00% |       0.0036 |          0.0010 |
|      10 |         580 |       00:00:44 |      100.00% |       0.0059 |          0.0010 |
|========================================================================================|

Run the trained network on the test set that was not used to train the network and predict the image labels (digits).

YPred = classify(net,imdsTest);
YTest = imdsTest.Labels;

Calculate the accuracy.

accuracy = sum(YPred == YTest)/numel(YTest)
accuracy = 0.9828

Specify the network file to import layers and weights from.

modelfile = 'digitsDAGnet.h5';

Import the network architecture and weights from the files you specified. To import the layer weights, specify 'ImportWeights' to be true. The function also imports the layers with their weights from the same HDF5 file.

layers = importKerasLayers(modelfile,'ImportWeights',true)
layers =
LayerGraph with properties:

Layers: [13×1 nnet.cnn.layer.Layer]
Connections: [13×2 table]

View the size of the weights in the second layer.

weights = layers.Layers(2).Weights;
size(weights)
ans = 1×4

7     7     1    20

The function has imported the weights so the layer weights are non-empty.

Specify the network file to import layers from and the file containing weights.

modelfile = 'digitsDAGnet.json';
weights = 'digitsDAGnet.weights.h5';

Import the network architecture and weights from the files you specified. The .json file does not include an output layer. Specify the output layer, so that importKerasLayers adds an output layer at the end of the networks architecture.

layers = importKerasLayers(modelfile, ...
'ImportWeights',true, ...
'WeightFile',weights, ...
'OutputLayerType','classification')
layers =
LayerGraph with properties:

Layers: [13×1 nnet.cnn.layer.Layer]
Connections: [13×2 table]

This example shows how to import the layers from a pretrained Keras network, replace the unsupported layers with custom layers, and assemble the layers into a network ready for prediction.

Import Keras Network

Import the layers from a Keras network model. The network in 'digitsDAGnetwithnoise.h5' classifies images of digits.

filename = 'digitsDAGnetwithnoise.h5';
lgraph = importKerasLayers(filename,'ImportWeights',true);
Warning: Unable to import some Keras layers, because they are not yet supported by the Deep Learning Toolbox. They have been replaced by placeholder layers. To find these layers, call the function findPlaceholderLayers on the returned object.

The Keras network contains some layers that are not supported by Deep Learning Toolbox. The importKerasLayers function displays a warning and replaces the unsupported layers with placeholder layers.

Plot the layer graph using plot.

figure
plot(lgraph)
title("Imported Network")

Replace Placeholder Layers

To replace the placeholder layers, first identify the names of the layers to replace. Find the placeholder layers using findPlaceholderLayers.

placeholderLayers = findPlaceholderLayers(lgraph)
placeholderLayers =
2x1 PlaceholderLayer array with layers:

1   'gaussian_noise_1'   PLACEHOLDER LAYER   Placeholder for 'GaussianNoise' Keras layer
2   'gaussian_noise_2'   PLACEHOLDER LAYER   Placeholder for 'GaussianNoise' Keras layer

Display the Keras configurations of these layers.

placeholderLayers.KerasConfiguration
ans = struct with fields:
trainable: 1
name: 'gaussian_noise_1'
stddev: 1.5000

ans = struct with fields:
trainable: 1
name: 'gaussian_noise_2'
stddev: 0.7000

Define a custom Gaussian noise layer. To create this layer, save the file gaussianNoiseLayer.m in the current folder. Then, create two Gaussian noise layers with the same configurations as the imported Keras layers.

gnLayer1 = gaussianNoiseLayer(1.5,'new_gaussian_noise_1');
gnLayer2 = gaussianNoiseLayer(0.7,'new_gaussian_noise_2');

Replace the placeholder layers with the custom layers using replaceLayer.

lgraph = replaceLayer(lgraph,'gaussian_noise_1',gnLayer1);
lgraph = replaceLayer(lgraph,'gaussian_noise_2',gnLayer2);

Plot the updated layer graph using plot.

figure
plot(lgraph)
title("Network with Replaced Layers")

Specify Class Names

If the imported classification layer does not contain the classes, then you must specify these before prediction. If you do not specify the classes, then the software automatically sets the classes to 1, 2, ..., N, where N is the number of classes.

Find the index of the classification layer by viewing the Layers property of the layer graph.

lgraph.Layers
ans =
15x1 Layer array with layers:

1   'input_1'                            Image Input             28x28x1 images
2   'conv2d_1'                           Convolution             20 7x7x1 convolutions with stride [1  1] and padding 'same'
3   'conv2d_1_relu'                      ReLU                    ReLU
4   'conv2d_2'                           Convolution             20 3x3x1 convolutions with stride [1  1] and padding 'same'
5   'conv2d_2_relu'                      ReLU                    ReLU
6   'new_gaussian_noise_1'               Gaussian Noise          Gaussian noise with standard deviation 1.5
7   'new_gaussian_noise_2'               Gaussian Noise          Gaussian noise with standard deviation 0.7
8   'max_pooling2d_1'                    Max Pooling             2x2 max pooling with stride [2  2] and padding 'same'
9   'max_pooling2d_2'                    Max Pooling             2x2 max pooling with stride [2  2] and padding 'same'
10   'flatten_1'                          Keras Flatten           Flatten activations into 1-D assuming C-style (row-major) order
11   'flatten_2'                          Keras Flatten           Flatten activations into 1-D assuming C-style (row-major) order
12   'concatenate_1'                      Depth concatenation     Depth concatenation of 2 inputs
13   'dense_1'                            Fully Connected         10 fully connected layer
14   'activation_1'                       Softmax                 softmax
15   'ClassificationLayer_activation_1'   Classification Output   crossentropyex

The classification layer has the name 'ClassificationLayer_activation_1'. View the classification layer and check the Classes property.

cLayer = lgraph.Layers(end)
cLayer =
ClassificationOutputLayer with properties:

Name: 'ClassificationLayer_activation_1'
Classes: 'auto'
OutputSize: 'auto'

Hyperparameters
LossFunction: 'crossentropyex'

Because the Classes property of the layer is 'auto', you must specify the classes manually. Set the classes to 0, 1, ..., 9, and then replace the imported classification layer with the new one.

cLayer.Classes = string(0:9)
cLayer =
ClassificationOutputLayer with properties:

Name: 'ClassificationLayer_activation_1'
Classes: [0    1    2    3    4    5    6    7    8    9]
OutputSize: 10

Hyperparameters
LossFunction: 'crossentropyex'

lgraph = replaceLayer(lgraph,'ClassificationLayer_activation_1',cLayer);

Assemble Network

Assemble the layer graph using assembleNetwork. The function returns a DAGNetwork object that is ready to use for prediction.

net = assembleNetwork(lgraph)
net =
DAGNetwork with properties:

Layers: [15×1 nnet.cnn.layer.Layer]
Connections: [15×2 table]
InputNames: {'input_1'}
OutputNames: {'ClassificationLayer_activation_1'}

Import layers from a Keras network that has parametric rectified linear unit (PReLU) layers.

A PReLU layer performs a threshold operation, where for each channel, any input value less than zero is multiplied by a scalar. The PReLU operation is given by

$\mathit{f}\left({\mathit{x}}_{\mathit{i}}\right)=\left\{\begin{array}{ll}{\mathit{x}}_{\mathit{i}}& \mathrm{if}\text{\hspace{0.17em}}{\mathit{x}}_{\mathit{i}}>0\\ {\mathit{a}}_{\mathit{i}}{\mathit{x}}_{\mathit{i}}& \mathrm{if}\text{\hspace{0.17em}}{\mathit{x}}_{\mathit{i}}\le 0\end{array}$

where ${\mathit{x}}_{\mathit{i}}$ is the input of the nonlinear activation $\mathit{f}$ on channel $i$, and ${a}_{i}$ is the scaling parameter controlling the slope of the negative part. The subscript $i$ in ${a}_{i}$ indicates that the parameter can be a vector and the nonlinear activation can vary on different channels.

importKerasNetwork and importKerasLayers can import a network that includes PReLU layers. These functions support both scalar-valued and vector-valued scaling parameters. If a scaling parameter is a vector, then the functions replace the vector with the average of the vector elements. You can modify a PReLU layer to have a vector-valued scaling parameter after import.

Specify the network file to import.

modelfile = 'digitsDAGnetwithPReLU.h5';

digitsDAGnetwithPReLU includes two PReLU layers. One has a scalar-valued scaling parameter, and the other has a vector-valued scaling parameter.

Import the network architecture and weights from modelfile.

layers = importKerasLayers(modelfile,'ImportWeights',true);
Warning: Layer 'p_re_lu_1' is a PReLU layer with a vector-valued parameter. The function replaces the parameter with the average of the vector elements. You can change the parameter back to a vector after import.

The importKerasLayers function displays a warning for the PReLu layer p_re_lu_1. The function replaces the vector-valued scaling parameter of p_re_lu_1 with the average of the vector elements. You can change the parameter back to a vector. First, find the index of the PReLU layer by viewing the Layers property.

layers.Layers
ans =
13x1 Layer array with layers:

1   'input_1'                       Image Input             28x28x1 images
2   'conv2d_1'                      Convolution             20 7x7x1 convolutions with stride [1  1] and padding 'same'
3   'conv2d_2'                      Convolution             20 3x3x1 convolutions with stride [1  1] and padding 'same'
4   'p_re_lu_1'                     PReLU                   PReLU layer
5   'p_re_lu_2'                     PReLU                   PReLU layer
6   'max_pooling2d_1'               Max Pooling             2x2 max pooling with stride [2  2] and padding 'same'
7   'max_pooling2d_2'               Max Pooling             2x2 max pooling with stride [2  2] and padding 'same'
8   'flatten_1'                     Keras Flatten           Flatten activations into 1-D assuming C-style (row-major) order
9   'flatten_2'                     Keras Flatten           Flatten activations into 1-D assuming C-style (row-major) order
10   'concatenate_1'                 Depth concatenation     Depth concatenation of 2 inputs
11   'dense_1'                       Fully Connected         10 fully connected layer
12   'dense_1_softmax'               Softmax                 softmax
13   'ClassificationLayer_dense_1'   Classification Output   crossentropyex

layers has two PReLU layers. Extract the fourth layer p_re_lu_1, which originally had a vector-valued scaling parameter for a channel dimension.

tempLayer = layers.Layers(4)
tempLayer =
PreluLayer with properties:

Name: 'p_re_lu_1'
RawAlpha: [20×1 single]

Learnable Parameters
Alpha: 0.0044

Show all properties

The RawAlpha property contains the vector-valued scaling parameter, and the Alpha property contains a scalar that is an element average of the vector values. Reshape RawAlpha to place the vector values in the third dimension, which corresponds to the channel dimension. Then, replace Alpha with the reshaped RawAlpha values.

tempLayer.Alpha = reshape(tempLayer.RawAlpha,[1,1,numel(tempLayer.RawAlpha)])
tempLayer =
PreluLayer with properties:

Name: 'p_re_lu_1'
RawAlpha: [20×1 single]

Learnable Parameters
Alpha: [1×1×20 single]

Show all properties

Replace the p_re_lu_1 layer in layers with tempLayer.

layers = replaceLayer(layers,'p_re_lu_1', tempLayer);
layers.Layers(4)
ans =
PreluLayer with properties:

Name: 'p_re_lu_1'
RawAlpha: [20×1 single]

Learnable Parameters
Alpha: [1×1×20 single]

Show all properties

Now the p_re_lu_1 layer has a vector-valued scaling parameter.

## Input Arguments

collapse all

Name of the model file containing the network architecture, and possibly the weights, specified as a character vector or a string scalar. The file must be in the current folder, in a folder on the MATLAB® path, or you must include a full or relative path to the file.

If modelfile includes

• The network architecture and weights, then it must be in HDF5 (.h5) format.

• Only the network architecture, then it can be in HDF5 or JSON (.json) format.

If modelfile includes only the network architecture, then you can optionally supply the weights using the 'ImportWeights' and 'WeightFile' name-value pair arguments. If you supply the weights, then the weights file must be in HDF5 format.

Example: 'digitsnet.h5'

Data Types: char | string

### Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: importKerasLayers(modelfile,'OutputLayerType','classification') imports the network layers from the model file modelfile and adds an output layer for a classification problem at the end of the Keras layers.

Type of the output layer that the function appends to the end of the imported network architecture when modelfile does not specify a loss function, specified as 'classification', 'regression', or 'pixelclassification'. Appending a pixelClassificationLayer object requires Computer Vision Toolbox™.

If a network in modelfile has multiple outputs, then you cannot specify the output layer types using this argument. importKerasLayers inserts placeholder layers for the outputs. After importing, you can find and replace the placeholder layers by using findPlaceholderLayers and replaceLayer, respectively.

Example: 'OutputLayerType','regression'

Size of the input images for the network, specified as a vector of two or three numerical values corresponding to [height,width] for grayscale images and [height,width,channels] for color images, respectively. The network uses this information when the modelfile does not specify the input size.

If a network in modelfile has multiple inputs, then you cannot specify the input sizes using this argument. importKerasLayers inserts placeholder layers for the inputs. After importing, you can find and replace the placeholder layers by using findPlaceholderLayers and replaceLayer, respectively.

Example: 'ImageInputSize',[28 28]

Indicator to import weights as well as the network architecture, specified as either false or true.

• If 'ImportWeights' is true and modelfile includes the weights, then importKerasLayers imports the weights from modelfile, which must have HDF5 (.h5) format.

• If 'ImportWeights' is true and modelfile does not include the weights, then you must specify a separate file that includes weights, using the 'WeightFile' name-value pair argument.

Example: 'ImportWeights',true

Data Types: logical

Weight file name, from which to import weights when modelfile does not include weights, specified as a character vector or a string scalar. To use this name-value pair argument, you also must set 'ImportWeights' to true.

Weight file must be in the current folder, in a folder on the MATLAB path, or you must include a full or relative path to the file.

Example: 'WeightFile','weights.h5'

Data Types: char | string

## Output Arguments

collapse all

Network architecture, returned as a Layer array object when the Keras network is of type Sequential, or returned as a LayerGraph object when the Keras network is of type Model.

## References

[1] Keras: The Python Deep Learning library. https://keras.io.
